KIRAN ULTISYS - 40 (Radiography System)   New

Details of Utilsys 40

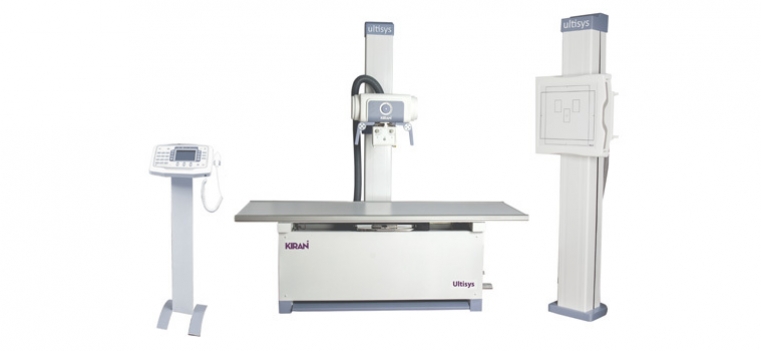

Ultisys 40 – An affordable & robust Analog Radiography System with best-in-class features and intuitive design.
Offer your patients the first choice for all radiographic examinations from skull, pelvis to extremities.
Our high frequency X-Ray Generator is compact in size and produces consistent output with negligible skin dose.
Ultisys 40 is available with Vertical Bucky Stand to carry out chest and all vertical applications and orthopaedic.
examinations.
Now you can take complete advantage and benefits of Full Digital Radiography by upgrading Ultisys 40 with DR Retrofit from Kiran at any time. The system stands for its enhanced workflow, superior image quality with highest diagnostic confidence.

Ultisys 40 – An affordable & robust Analog Radiography System with best-in-class features and intuitive design.
Offer your patients the first choice for all radiographic examinations from skull, pelvis to extremities.
Our high frequency X-Ray Generator is compact in size and produces consistent output with negligible skin dose.
Ultisys 40 is available with Vertical Bucky Stand to carry out chest and all vertical applications and orthopaedic.
examinations.
Now you can take complete advantage and benefits of Full Digital Radiography by upgrading Ultisys 40 with DR Retrofit from Kiran at any time. The system stands for its enhanced workflow, superior image quality with highest diagnostic confidence.

Specification

Robust X-Ray TubeDual focus roatating anode X-Ray Tube 40 kW generator compatible for all types of radiography procedures • Focal spot SF 1.0x1.0mm & LF 2.0x2.0mm

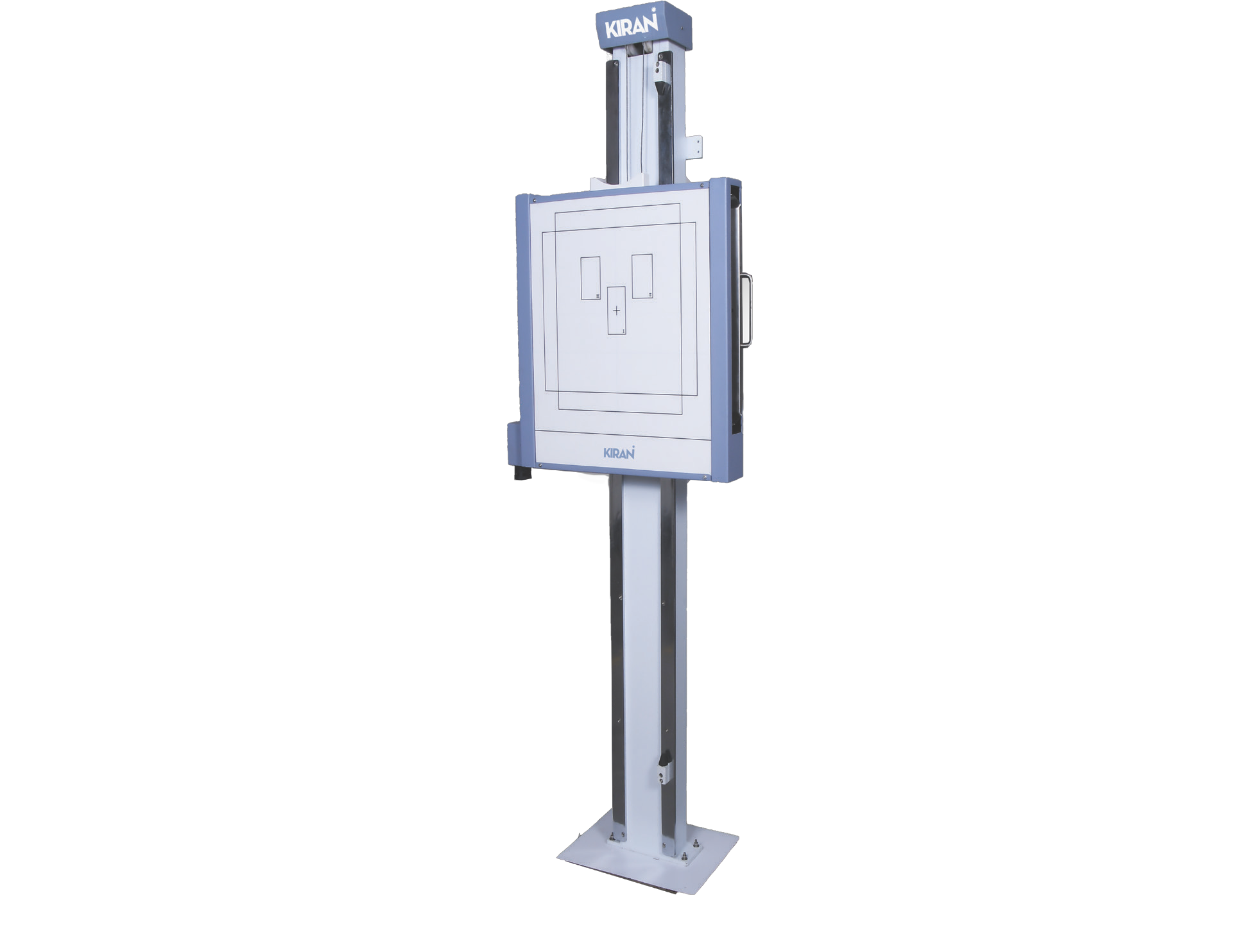

Vertical Bucky StandVertical Travel upto 1180 mm • Manual Locking with Knobs • Oscillating Bucky with integrated high density Anti-scatter Grid

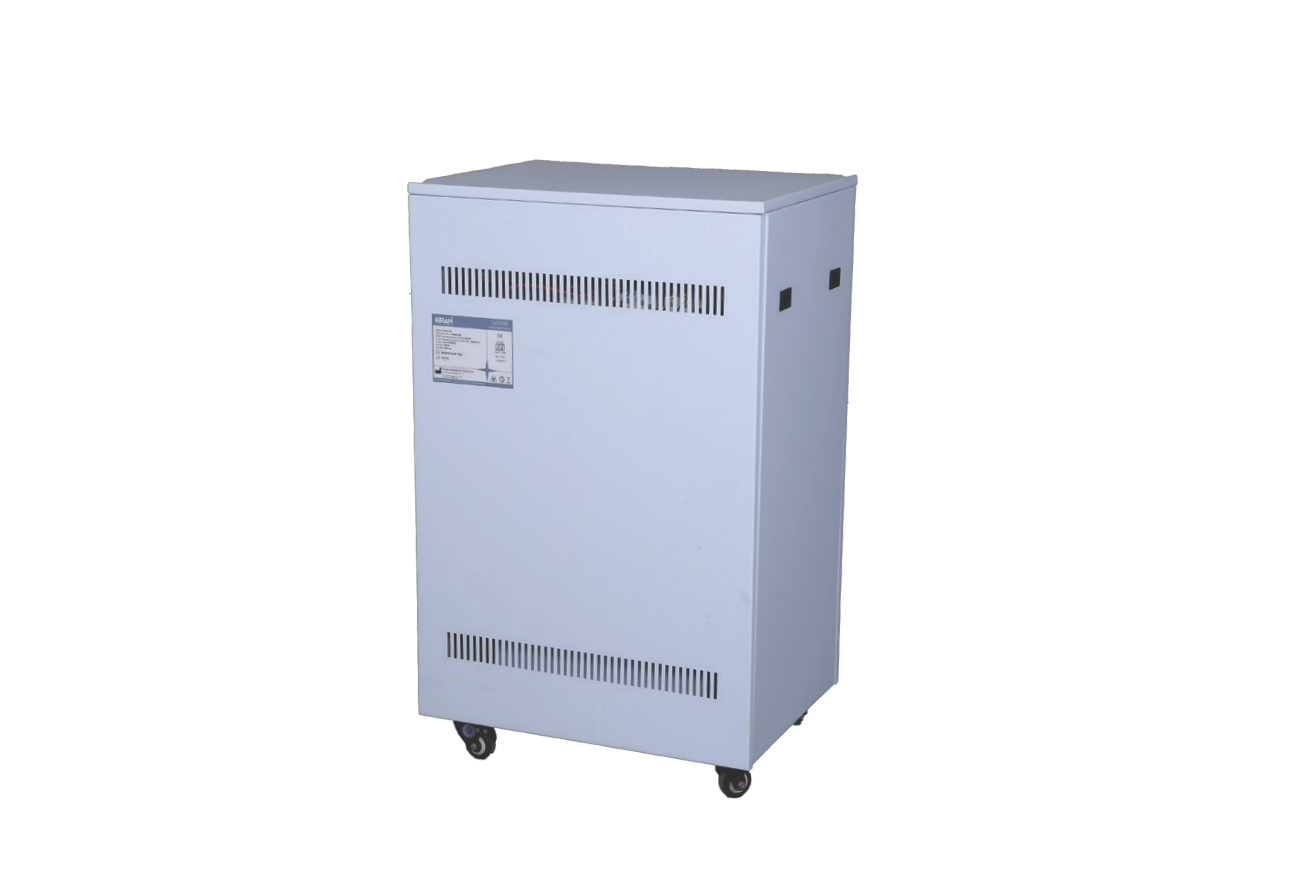

X-ray GeneratorHigh Frequency - Multipulse with 40 kW Output • High data accuracy and reproducibility at shortest exposure time • Compact size with low space requirement
Ceiling Free Tube StandTube rotation angle ±90 • Longitudinal travel upto 2070mm • Manual Locking with Knobs • Fully Counter-balanced movement • Tube centered to Bucky • Central control movement of tube stand

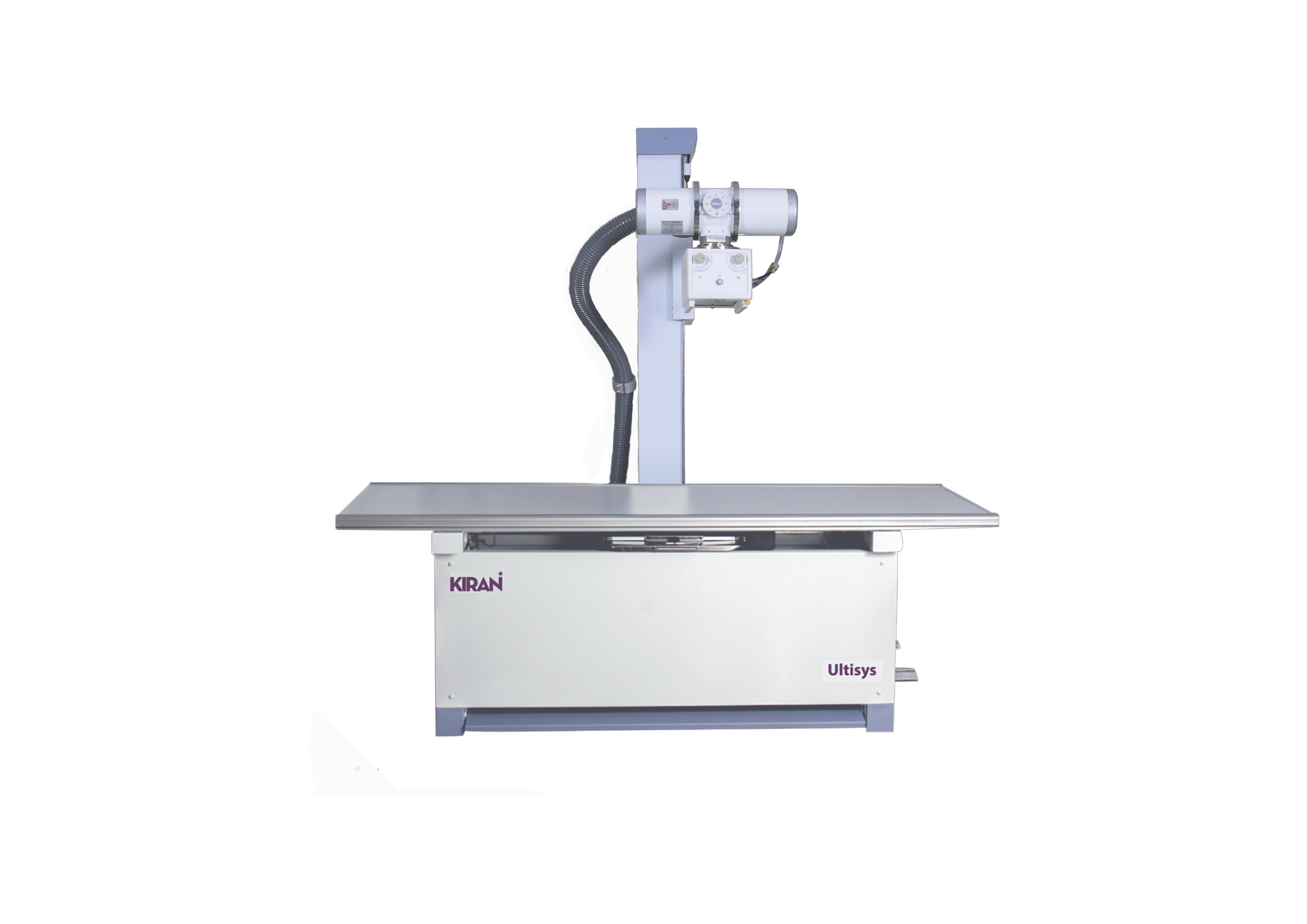

Table OptionsHorizontal Table with oscillating Bucky grid • Five Position Table Manual/Motorized Movements

Technical Specifications

Power Rating40KW
Supply Main Resistance±10% (Frequency: 50/60 Hz)
Line Voltage, Phase400VAC ±10%
kV Voltage Range40-125KV
mA Range10 to 500mA
