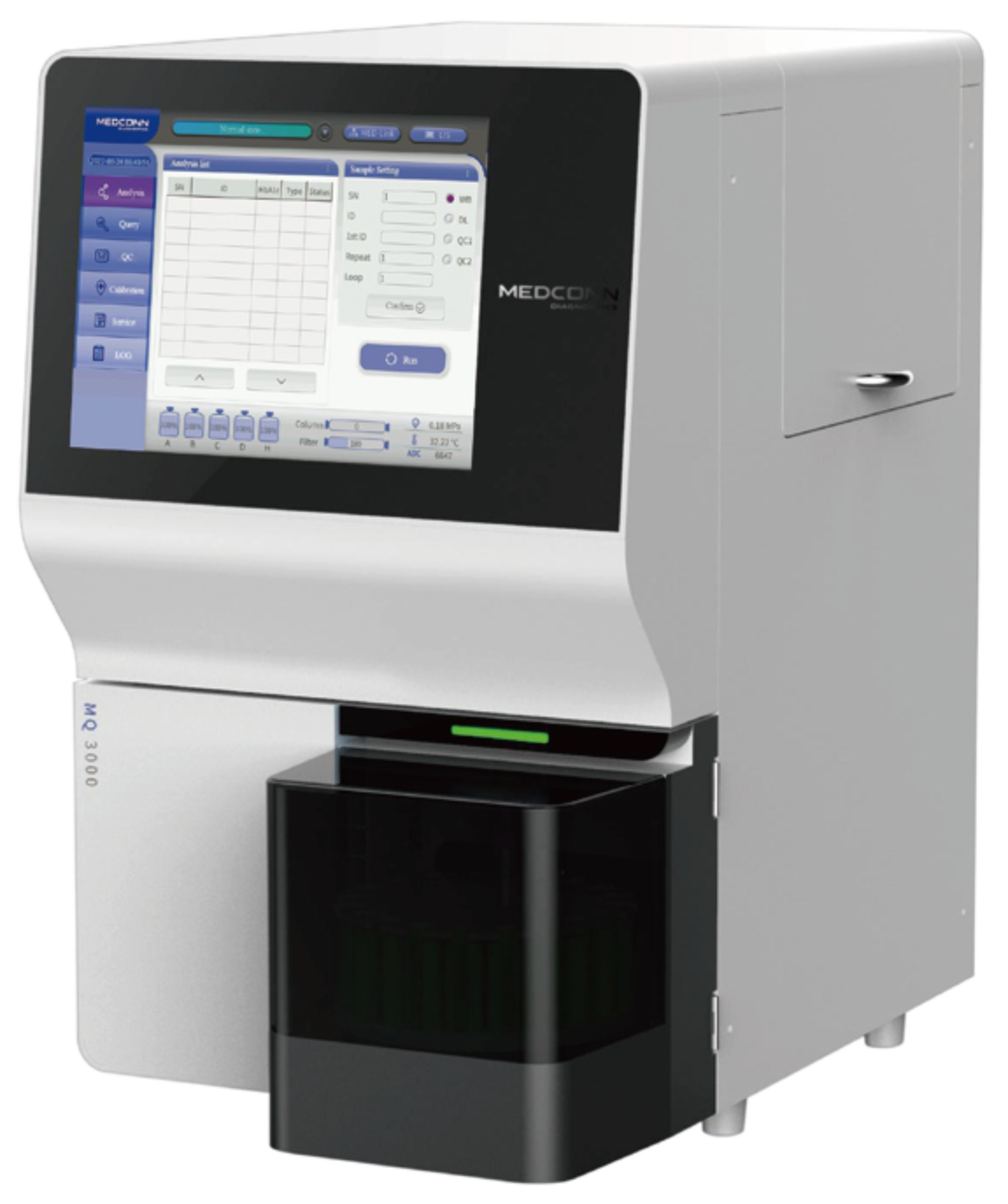

MQ-3000(HPLC) Glycated Hemoglobin(HbA1c)Analyzer

MQ-3000(HPLC) Glycated Hemoglobin(HbA1c)Analyzer   New

Details of MQ-3000(HPLC)





Gold standard: Ion exchange high performance liquid chromatography (HPLC);
Certification: IFCC & NGSP certificateCap Piercing;
Variant separation;
Speed: 120 seconds per test;
External bar code scanner;
Result can be transmitted to Lis system
Sample loader: carousel design, smaller footprint;
Interface: 10.4 inch LCD touch screen, all information shown on the screen

Gold standard: Ion exchange high performance liquid chromatography (HPLC);
Certification: IFCC & NGSP certificateCap Piercing;
Variant separation;
Speed: 120 seconds per test;
External bar code scanner;
Result can be transmitted to Lis system
Sample loader: carousel design, smaller footprint;
Interface: 10.4 inch LCD touch screen, all information shown on the screen

Specifications

AnalytesHbA1c, HbF, HbE, HbD, HbS, HbC, HbA1a, LA1c, HBA0, HbA2(Optional)
Throughput115 sec/test for variant mode , 6 min/test for thalassemia mode
Loading Capacity18 Samples
Measuring Range(NGSP)3.0%-20.0%
PrecisionCV<2%
Data StorageOn-board memory up to 100,000 results with graph
On Board reagent volume detectionSoftware calculation
Display10.4 inch touch screen
OutputInternal Thermal Printer, LIS system, USB
Sample HandlerDilution and whole blood sample auto-switching, External barcode reader, cap piercing
Working Environment10°C-30°C, Humidity:≤80%, Altitude: Self-adaptive
Dimension457 mm x 325 mm x 521 mm(L*W*H)
Weight22.0 kg

Specificattions

Sample ConsumptionWhole Blood: 4uL, Diluted Blood : 100 uL
